Amarr · Premium Carriage House Steel
Amarr Carriage Court
Steel Overlay Carriage House Garage Doors
Distinctly defined carriage house doors with 18 highly defined designs, composite overlay trim, and superior energy efficiency.
Starting$2,540$3,48027% off· factory-direct
Configurations
Door Styles
A few of the looks you can build: panel, window and color combinations.

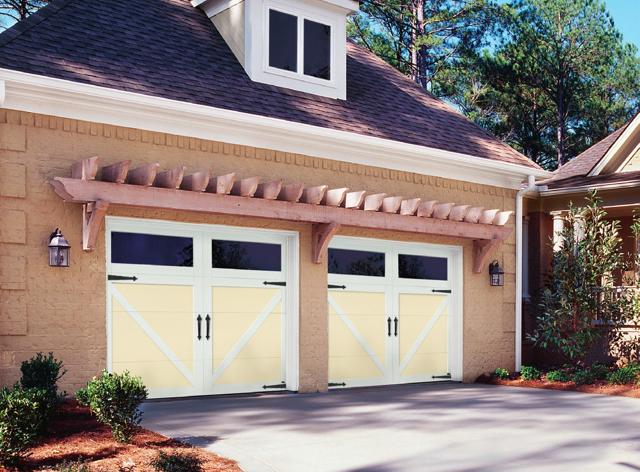

Kensington · Clear Square · Almond / White

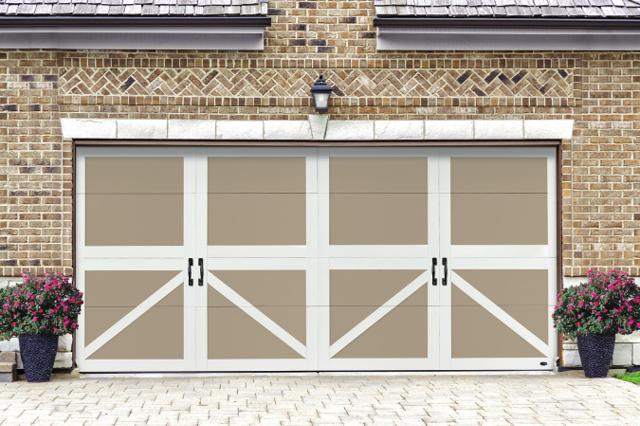

Newberry · Closed Square · Sandtone / White

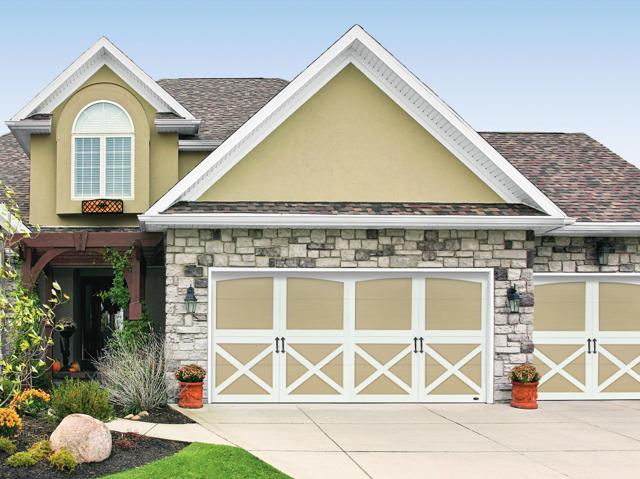

Tanglewood · Closed Arch · Wicker Tan / White

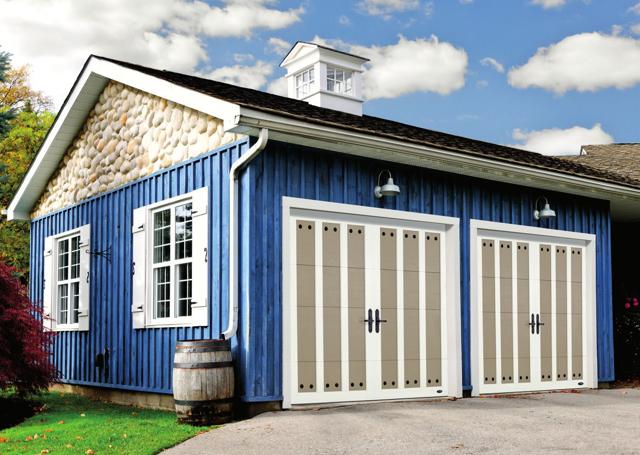

Arcadia · Closed Square · Sandtone / White
12 Options
Window Inserts
DecraTrim and DecraGlass designs to personalize every section.
Finishing Touches

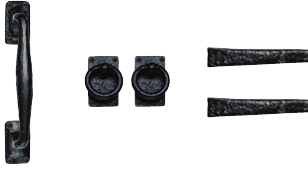

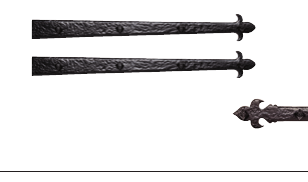

Decorative Hardware
Hand-forged looks in aluminum, stamped steel and magnetic vinyl.
Build-up
Construction & Insulation
Compare thermal performance, build and warranty at a glance.

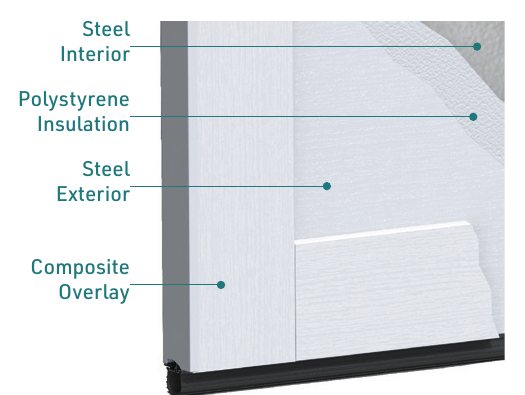

Best  CC4000 Four-Layer Steel Overlay | |
|---|---|
| R-Value | 6.48 |
| Thickness | 2" |
| U-Factor | 0.26 |
| Insulation | Polystyrene |
| Steel | 1-3/8" steel section + 5/8" composite overlay |
| Warranty | Lifetime Paint / 5 Years Workmanship / 10 Years Overlay |
Texture
Panel Designs
18 distinctive panel designs to match your home's architectural style.

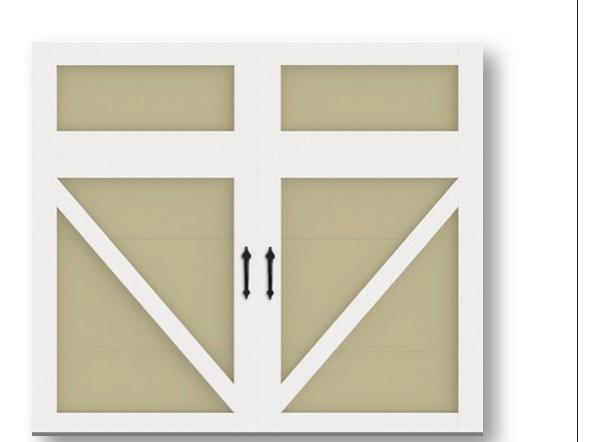

Kensington (KT)Popular
Bold crossbuck (X) bracing across the lower section; available with windows.

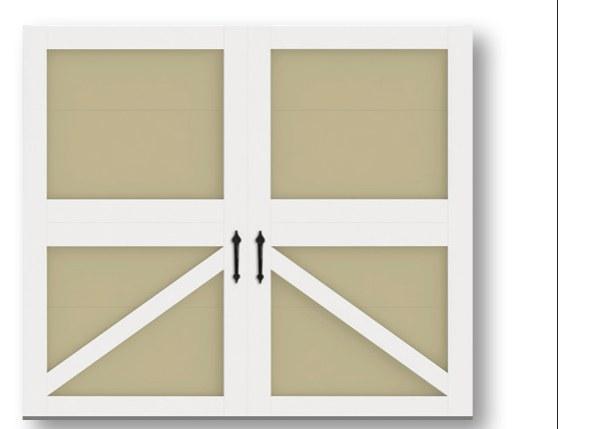

Newberry (NB)Popular
Inverted-V (chevron) cross-brace over recessed panels; solid design.

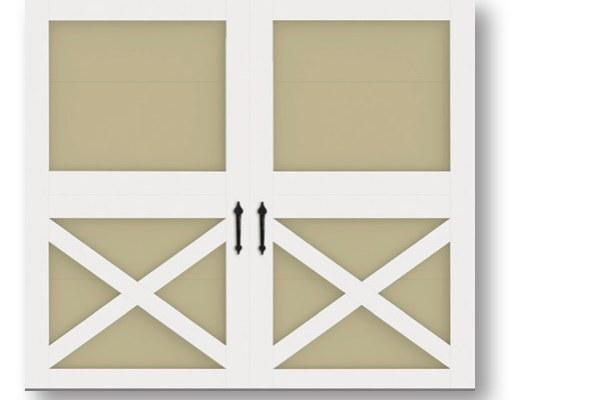

Tanglewood (TW)Popular
Crossed diagonal (X) bracing for a rustic barn-door look; solid design.

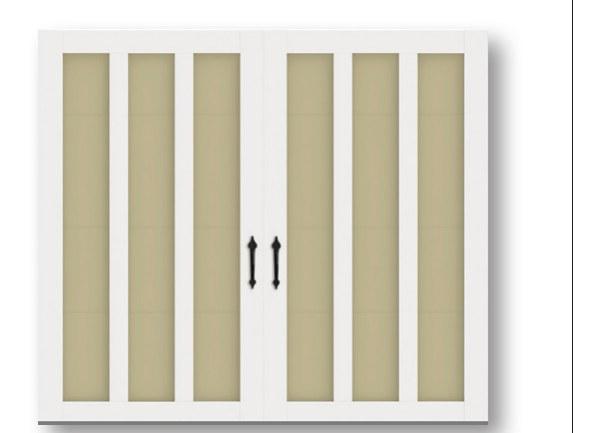

Arcadia (AR)Popular
Continuous vertical board-and-batten planks; Closed Square only.

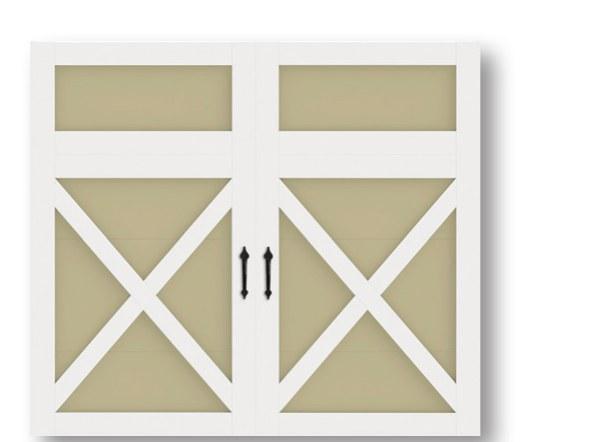

Rosemont (RM)
Full X-crossbuck bracing across the door; available with windows.

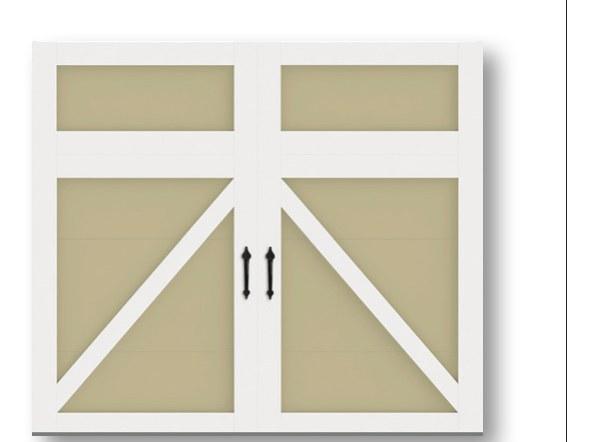

Seabrook (SB)
Single diagonal Z-brace for authentic barn character; available with windows.

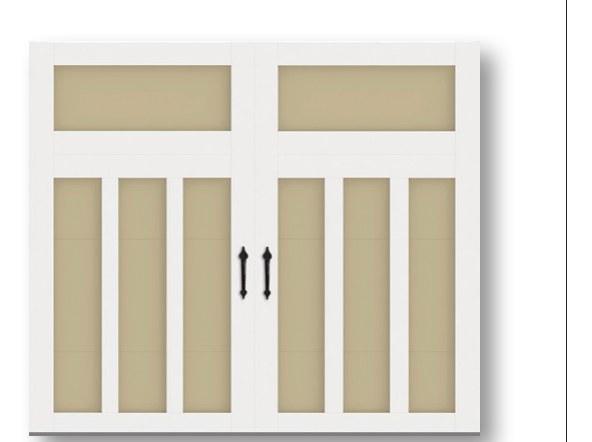

Bradberry (BB)
Balanced vertical plank panels; available with windows.
Laurelbay (LB)
Slim vertical planks flanking a paneled center; available with windows.
Pinetop (PT)
Clean, symmetric recessed vertical panels with full window options.
Ashley (AL)
Two clean recessed vertical panels; solid design.

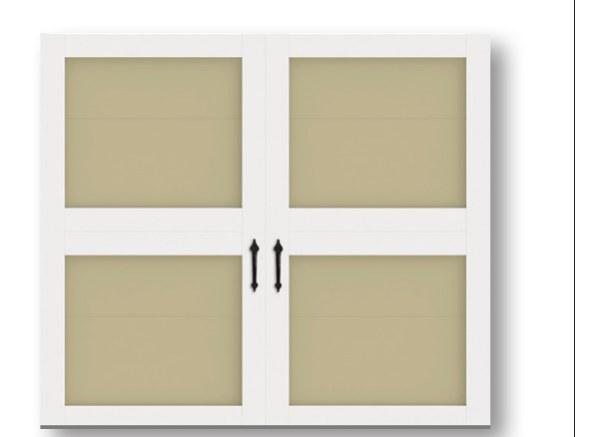

Charlton (CT)
Balanced four-panel (2x2) layout; solid design.

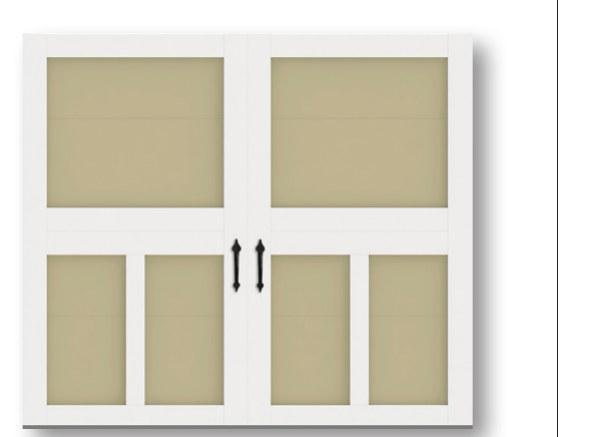

Fairfield (FF)
Stacked recessed panels for a traditional carriage look; solid design.
Middleton (MT)
Wide upper panel over narrow vertical lower planks; solid design.
Greenbriar (GB)
Vertical plank lower section beneath recessed top panels; solid design.

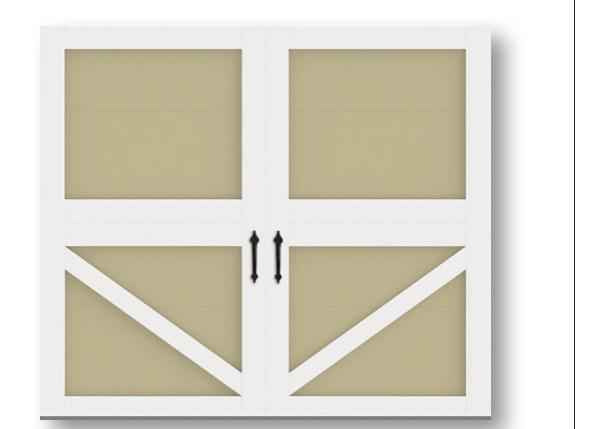

Darby (DB)
Single long diagonal cross-brace for an authentic barn look; solid design.
Ravenwood (RW)
Three tall vertical recessed panels; Closed Square only.

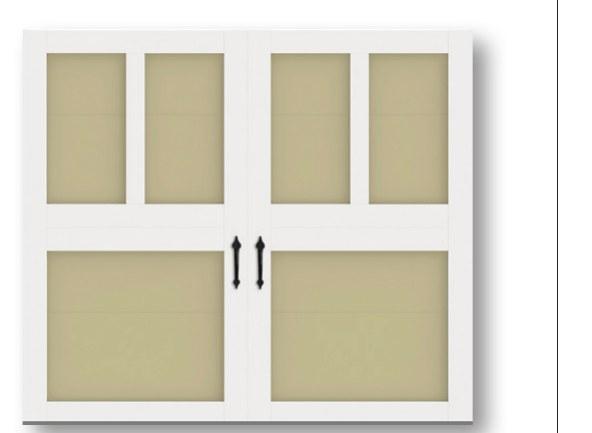

Brookland (BL)
Paired upper panels over a large lower panel; Closed Square only.

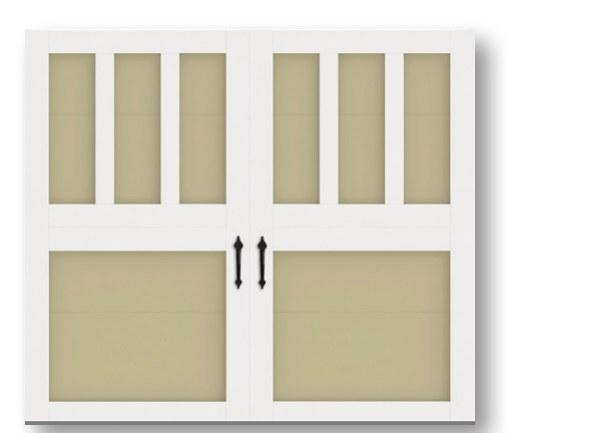

Magnolia (MG)
Narrow vertical upper panels over a wide lower panel; Closed Square only.
Sizing
Sizes & Configurations
Available widths, heights and window sections.
| Door Widths | 6', 8', 9', 10', 12', 14', 15', 15'6", 15'8", 16', 18' (no odd widths) |
| 6' Width Designs | Ashley, Charlton, Greenbriar and Laurelbay only (no windows) |
| Door Heights | 6'6" – 10' in 3" increments |
| Sections | 4 sections up to 8' tall; 5 sections for 8'3"–10' |
| Window Section | Large rectangular or arched windows in the 24" top section |
Finish
Colors & Glass
4 standard color options.
Details
Specifications
Everything under the surface.
Construction
Performance & Warranty
Highlights
Factory-Direct Pricing
Design your Amarr Carriage Court
Distinctly defined. The Amarr Carriage Court collection adds increased curb appeal to your home with 18 highly defined carriage house garage door designs. Built with durable composite overlay trim and insulated steel-backed sections, these garage doors provide energy efficiency, noise reduction and innovative design to your home.
